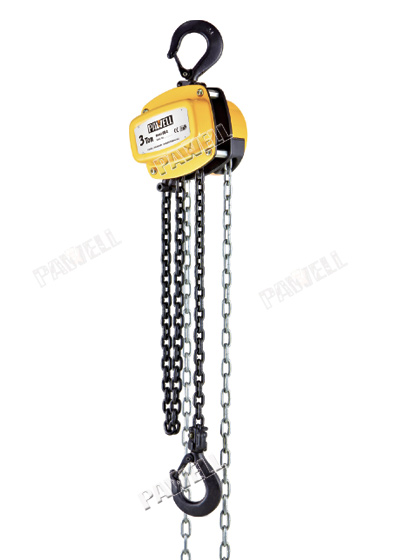

YH Manual Chain Hoist

MANUAL CHAIN HOIST Model: YH360  Capacity 1000 - 3000kg


Areas of operation as well as operator conditions have been improved in trailblazing fashion, which goes far beyond the classical hand chain hoist.



Features

• The revolutionary 360°rotating hand chain guide allows the operator to work from
  virtually any position, in confined spaces or above the load. YH360 can even be
  operated from the side of the load which also makes it possible to use the hoist for
  horizontal pulling or tensioning. Due to the additional flexibility, the operator is no
  longer forced to work in the danger zone near the load.
• The enclosed robust stamped steel housing protects all internal components even in
  the toughest conditions.
• Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions
  the internal gear box remains protected.
• The hardened load sheave with four precision machined pockets ensures accurate
  movement of the load chain.
• Drop forged load and suspension hooks that yield under overload instead of breaking,
  are made of high tensile steel. The hooks are fitted with robust safety  latches and rotate
  360°

Technical Parameters

Item Code

Capacity
(kg)

Model

No.
of chain

Chain size
(mm)

Pull on hand
chain at WLL N

Net weight at
standard 3m
lift(kg)

201010

1000

YH010

1

6×18

240

13.9

201020

2000

YH020

1

8×24

329

21.6

201030

3000

YH030

1

10×30

410

30.6



Size Specification (mm)

Item Code

Model

Hmin

B

C

D

E

F

201010

YH010

355.6

22.2

28.6

14.3

176

155.6

201020

YH020

395

30

35

20.6

203

182.5

201030

YH030

520

38

39.7

25.4

224

220
