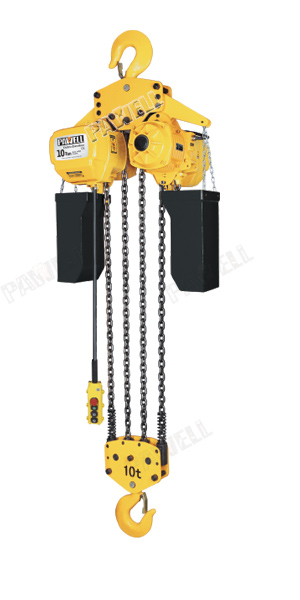

PE Hook Suspension Hoist
Features
• Classification 1 Am,
• The standard version comes with direct control.
• 1 years warranty (excluding wear parts) as well as a lifetime lubricated gear box.
• Motor fitted with a bimetallic thermal protection(useable in connection with optional low
voltage control).
• Duty cycle 40 % at one operating speed.
• The heavy duty squirrel cage motor has an adjustable spring pressure brake that holds the
load secure even in the event of a power failure.
• Motor protected to IP 54, insulation class F.
• The 5-pocket load chain sheave, manufactured from wear resistant case hardening steel, is
matched perfectly to the load chain to guarantee smooth and precise chain motion.
• The assembly of component parts result in a low overall height (up to 3000 kg only one chain
fall).
• The standard, oil bath lubricated planetary gearbox is particularly smooth running.
• Forged suspension and load hooks, manufactured from non-aging, high alloy tempering
steel, yield under overload instead of breaking.
• The standard case hardened and FEC chain is matched perfectly to the load chain to
guarantee smooth
• All requirements of national and international standards and regulations are fulfilled.
- PE Capacity 0.5~5 Ton (single speed)
- PE Capacity 0.5~5 Ton (Dual speed)
- PE Capacity 7.5~10 Ton (Singe / Dual speed)
Technical Parameters
| Capacity | Model | Lifting speed | Motor Power | No. of chain | Chain size | Net weight |
| (t) | (m/min) | (Kw) | (Kg) | |||
| 500kg | PE005S | 7.8 | 0.8 | 1 | 6.3x19 | 47 |
| 1 | PE010S | 6.6 | 1.5 | 1 | 7.1x21 | 61 |
| PE010L | 3.3 | 0.8 | 2 | 6.3*19 | 49 | |
| 2 | PE020S | 6.6 | 3.0 | 1 | 10x30 | 115 |
| PE020L | 3.3 | 1.5 | 2 | 7.1x21 | 73 | |
| 3 | PE030S | 5.4 | 3.0 | 1 | 11.2x34 | 115 |
| PE030L | 4.4 | 3.0 | 2 | 10x30 | 122 | |
| PE033L | 2.2 | 1.5 | 3 | 7.1x21 | 131 | |
| 5 | PE050S | 2.7 | 3.0 | 2 | 11.2x34 | 151 |
| 7.5 | PE075S | 1.8 | 3.0 | 3 | 7.1x21 | 176 |
| 10 | PE100S | 2.7 | 3.0 | 4 | 11.2x34 | 300 |
PE Capacity 0.5~5 Ton (single speed)
Features
• Three meters of power supply cable as standard accompanies.
• Optional length of lift, push button cord and power supply cable besides standard is
available on your request.
• Extending the load chain is prohibited with additional links.
• Steel chain containers are available as option if your lift is more than capacity of the
standard container volume.
Technical Parameters
Capacity(t) | Model | Lifting speed(m/min) | Motor Power(Kw) | No. of chain | Chain size | Net weight(Kg) |
500kg | PE005S | 7.8 | 0.8 | 1 | 6.3×19 | 47 |
1 | PE010S PE010L | 6.6 3.3 | 1.5 0.8 | 1 2 | 7.1×21 6.3×19 | 61 52 |
2 | PE020S PE020L | 6.6 3.3 | 3.0 1.5 | 1 2 | 10×30 7.1×21 | 115 73 |
3 | PE030S PE030L PE033L | 5.4 4.4 2.2 | 3.0 3.0 1.5 | 1 2 3 | 11.2×34 10×30 7.1×21 | 115 122 131 |
5 | PE050S | 2.7 | 3.0 | 2 | 11.2×34 | 151 |
Size Specification (mm)
Model | H | A | B | D | E |
PE005S | 530 | 460 | 230 | 288 | 178 |
PE010S | 650 | 520 | 260 | 300 | 176 |
PE010L | 670 | 460 | 230 | 288 | 178 |
PE020S | 800 | 615 | 295 | 430 | 265 |
PE020L | 835 | 520 | 260 | 300 | 236 |
PE030S | 845 | 615 | 295 | 430 | 265 |
PE030L | 950 | 615 | 295 | 430 | 320 |
PE033L | 950 | 520 | 260 | 350 | 205 |
PE050S | 1030 | 615 | 295 | 430 | 325 |
PE Capacity 0.5~5 Ton (Dual speed)
Features
• Three meters of power supply cable as standard accompanies.
• Optional length of lift, push button cord and power supply cable besides standard is
available on your request.
• Extending the load chain is prohibited with additional links.
• Steel chain containers are available as option if your lift is more than capacity of the standard
container volume.
Technical Parameters
Capacity(t) | Model | Lifting speed (m/min) | Motor Power (Kw) | No. of chain | Chain size | Net weight (Kg) |
500kg | PE005SD | 7.8/2.4 | 0.8/0.27 | 1 | 6.3×19 | 54 |
1 | PE010SD | 6.9/2.3 | 1.8/0.6 | 1 | 7.1×21 | 74 |
PE010LD | 3.3/1.1 | 0.8/0.27 | 2 | 6.3×19 | 61 | |
2 | PE020SD | 6.9/2.3 | 3.0/1.0 | 1 | 10×30 | 150 |
PE020LD | 3.3/1.1 | 1.8/0.6 | 2 | 7.1×21 | 86 | |
3 | PE030SD | 5.4/1.8 | 3.0/1.0 | 1 | 11.2×34 | 159 |
PE030LD | 4.5/1.5 | 3.0/1.0 | 2 | 10×30 | 168 | |
PE033LD | 2.4/0.8 | 1.8/0.6 | 3 | 7.1×21 | 102 | |
5 | PE050SD | 2.7/0.9 | 3.0/1.0 | 2 | 11.2×34 | 184 |
Size Specification (mm)
Model | H | A | B | D | E |
PE005SD | 530 | 545 | 260 | 288 | 178 |
PE010SD | 650 | 582 | 280 | 300 | 176 |
PE010LD | 670 | 545 | 260 | 288 | 205 |
PE020SD | 800 | 670 | 313 | 430 | 265 |
PE020LD | 835 | 582 | 280 | 300 | 236 |
PE030SD | 845 | 670 | 313 | 430 | 265 |
PE030LD | 950 | 670 | 313 | 430 | 320 |
PE033LD | 950 | 582 | 280 | 350 | 205 |
PE050SD | 1030 | 670 | 313 | 430 | 325 |
PE Capacity 7.5~10 Ton (Singe / Dual speed)
Features
• Three meters of power supply cable as standard accompanies.
• Optional length of lift, push button cord and power supply cable besides standard is available
on your request.
• Extending the load chain is prohibited with additional links.
• Steel chain containers are available as option if your lift is more than capacity of the standard
container volume
Technical Parameters
Capacity (t) | Model | Lifting speed (m/min) | Motor Power (Kw) | No. of chain | Chain size | Net weight (Kg) |
7.5 | PE075S | 1.8 | 3.0 | 3 | 11.2×34 | 176 |
PE075SD | 1.8/0.6 | 3.0/1.0 | 3 | 11.2×34 | 215 | |
10 | PE100S | 2.7 | 3.0×2 | 4 | 11.2×34 | 300 |
PE100SD | 2.7/0.9 | 3.0×2/1.0×2 | 4 | 11.2×34 | 380 |
Size Specification (mm)
Model | H | A | B | D | E |
PE075S | 1200 | 615 | 295 | 505 | 320 |
PE075SD | 1200 | 670 | 313 | 505 | 320 |
PE100S | 1400 | 630 | 315 | 890 | 445 |
PE100SD | 1400 | 670 | 388 | 890 | 445 |
