Manual Push Trolley GB TB
PUSH TROLLEY AND GEARED TROLLEY Model: TB and Model: GB Capacity: 500 - 10000 kg
The trolley enables the exact positioning or easy traversing of large loads with either manual or powered hoisting equipment.
Features
• Extremely easy work-site installation.• Compatible with I beam and H bean rails.
• High quality sealed ball bearings.
• Lifght selfweight and compact.
• Easily travel over minor rail surface irregularities.
• For geared trolley, the standard opertion chain length is 3meter, other length is avaiable
upon request
Technical Parameters

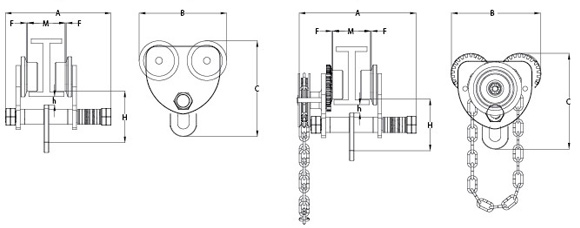

| Item Code | Capacity | Model | Beam flange width F | Size dimension (mm) | Net weight(Kg) | ||||
A | B | C | H | F | |||||
210005 | 500 | GB005 | 50-125 | 206 | 174 | 180 | 118 | ≈2 | 8 |
210010 | 1000 | GB010 | 75-125 | 271 | 206 | 222 | 120 | ≈3 | 15 |
210020 | 2000 | GB020 | 100-150 | 308 | 240 | 267 | 132 | ≈3 | 18 |
210030 | 3000 | GB030 | 100-150 | 342 | 279 | 319 | 181 | ≈3 | 35 |
210050 | 5000 | GB050 | 125-175 | 384 | 318 | 384 | 219 | ≈3 | 54 |
210100 | 10000 | GB100 | 150-175 | 410 | 721 | 450 | 220 | ≈3 | 100 |
211005 | 500 | TB005 | 50-125 | 200 | 174 | 180 | 118 | ≈2 | 6 |
211010 | 1000 | TB010 | 75-125 | 220 | 206 | 222 | 120 | ≈3 | 8 |
211020 | 2000 | TB020 | 100-150 | 260 | 240 | 267 | 132 | ≈3 | 13 |
211030 | 3000 | TB030 | 100-150 | 285 | 279 | 319 | 181 | ≈3 | 24 |
211050 | 5000 | TB050 | 125-175 | 338 | 318 | 384 | 219 | ≈3 | 44 |
