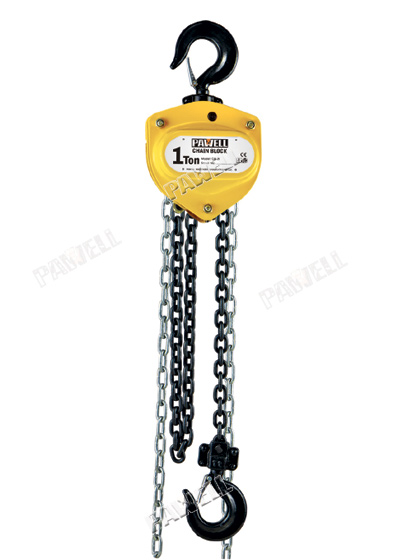

MH Manual Chain Hoist

MANUAL CHAIN HOIST Model: MH Capacity range from 0.5t to 30t.

Features

• The MH model hand chain hoist results from the  application of high technology with
   emphasis on overall performance required in a quality chain hoist.
• Lighter weight, higher efficiency and more compact size, these hoists are valuable in
   lifting application
• The enclosed robust stamped steel housing protects all internal components even in the
   toughest conditions.
• Chain guide and gearbox are almost totally enclosed. Even under the toughest conditions
   the internal gearbox remains protected.
• The hardened load sheave with four precision machined pockets ensures accurate
   movement of the load chain.
• Drop forged load and suspension hooks that yield under overload instead of breaking, are
   made of high tensile steel.
• The hooks are fitted with robust safety latches and rotate 360°

Technical Parameters

Item Code	Capacity	Model	No. of chain	Chain size (mm)	Pull on hand chain at WLL (N)	Net weight at standard 3m lift (kg)
202005	500	MH005	1	5×15	240	9.3
202010	1000	MH010	1	6×18	250	12.2
202015	1500	MH015	1	7×21	265	16.5
202020	2000	MH020	1	8×24	335	19.5
202030	3000	MH030	1	10×30	372	32
202050	5000	MH050	2	10×30	380	43
202075	7500	MH075	3	10×30	380	71.6
202100	10000	MH100	4	10×30	380	80.7
202150	15000	MH150	6	10×30	385	140
202200	20000	MH200	8	10×30	400x2	180
202300	30000	MH300	12	10×30	420x3	350



Size Specification (mm)

Item Code	Model	Hmin	A	B	C	D
202005	MH005	345	148	132	23	35
202010	MH010	376	172	151	26	40
202015	MH015	442	196	173	29.5	45
202020	MH020	470	210	175	34	50
202030	MH030	580	255	205	37.5	55
202050	MH050	690	280	189	41	65
202075	MH075	800	433	189	50	85
202100	MH100	830	463	189	50	85
202150	MH150	980	540	220	80	110
202200	MH200	1000	630	200	80	110
202300	MH300	1400	705	510	80	110
