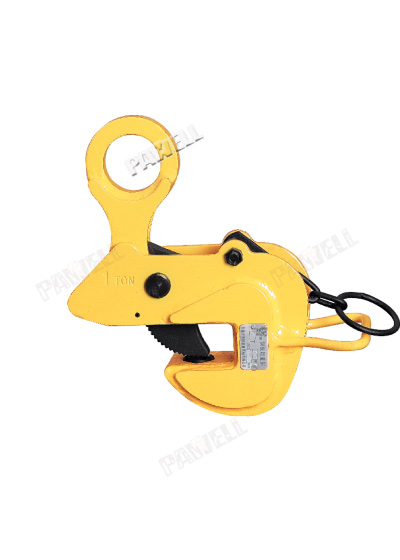

Horizontal Lifting Clamp
HORIZONTAL LIFTING CLAMP Item code: 320### Capacity: 0.5-10T
• Suitable for lifting and transport of flat steel plate (H type, 1 type, T-type,L-shaped steel,
etc.) and structural iron (horizontal) hanging clamp, shaped steel.
• A lock mechanism spring-tightening, even at no load condition, clamps grip securely.
• Mechanism gripping force is increased more strongly in proportion to the lifting load.
• By the high-frequency hardening, cam distinguished durable die forging of
Features
• Suitable for lifting and transport of flat steel plate (H type, 1 type, T-type,L-shaped steel, etc.) and structural iron (horizontal) hanging clamp, shaped steel.
• A lock mechanism spring-tightening, even at no load condition, clamps grip securely.
• Mechanism gripping force is increased more strongly in proportion to the lifting load.
• By the high-frequency hardening, cam distinguished durable die forging of

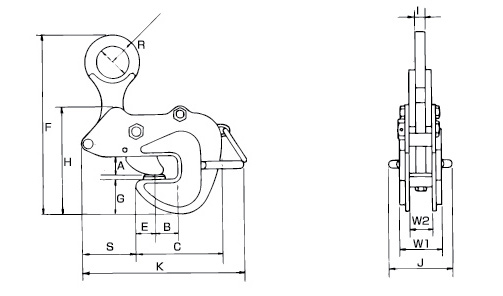

Technical Parameters
| Item Code | Capacity (pair/kg) | Jaw opening (mm) | Dimensions (mm) | Weight(kg) | |||||||||||||
A | B | C | E | F | G | H | I | J | K | S | R | w1 | w2 | ||||
313005 | 500 | 0-20 | 23 | 30 | 116 | 26 | 188-215 | 41 | 135 | 12 | 110 | 232 | 76 | 25 | 65 | 28 | 3.2 |
313010 | 1000 | 0-25 | 28 | 35 | 129 | 27 | 221-260 | 46 | 155 | 16 | 114 | 259 | 80 | 40 | 66 | 34 | 5.3 |
313020 | 2000 | 0-30 | 33 | 40 | 146 | 35 | 246-290 | 60 | 175 | 18 | 114 | 273 | 74 | 45 | 76 | 40 | 7.9 |
313030 | 3000 | 0-38 | 41 | 45 | 165 | 35 | 267-315 | 70 | 200 | 18 | 114 | 305 | 88 | 48 | 76 | 40 | 10.5 |
313050 | 5000 | 0-40 | 45 | 45 | 205 | 45 | 362-403 | 75 | 238 | 28 | 152 | 388 | 177 | 55 | 87 | 59 | 27.6 |
313100 | 10000 | 20-70 | 75 | 70 | 250 | 50 | 430-490 | 92 | 303 | 36 | 178 | 454 | 135 | 55 | 109 | 71 | 50 |

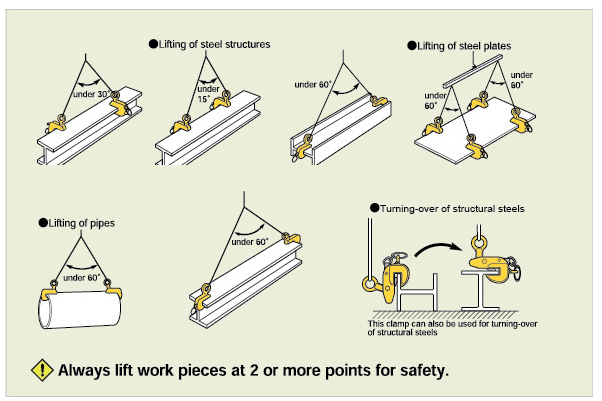

Examples Of Use
